Blue Arrow PBMV Balloon Catheter Set
Specially designed for the treatment of Mitral Valve Stenosis
Features:
·Specially designed balloon, perfectly shaped to fit the mitral valve
·Stepwise dilatation for optimal results with one single balloon
·Short Inflation/deflation cycle
·New small and soft tip for safety
·Longer guidwire to increase safety in taller patients
Product specification/Ordering information

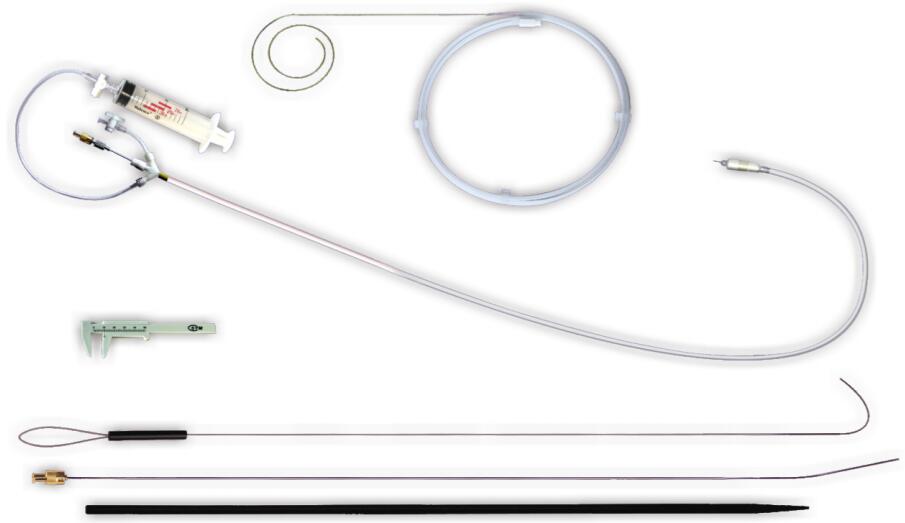

PBMV balloon catheters are supplied as a complete set containing balloon catheter, guidewire, dilator, stretching tube, stylet, ruler and sytinge.
| Balloon code | Inflation range | PBMV Set Code | Catheter O.D | 12F |
| PBMV-20 | 16-20mm | PBMV-20S | Catheter Length | 800mm |
| PBMV-22 | 18-22mm | PBMV-22S | Maximum Working Pressure | 280KPa |
| PBMV-24 | 20-24mm | PBMV-24S | Burst Pressure | 450KPa |
| PBMV-26 | 22-26mm | PBMV-26S | | |
| PBMV-28 | 24-28mm | PBMV-28S | | |
| PBMV-30 | 26-30mm | PBMV-30S | | |
| Item | Purpose | O.D. | Length |
| Balloon Catheter | Dilating mitral valve | 12F | 800mm |
| Stretching Tube | Stretching Balloon Catheter | 1.2mm | 800mm |
| Dilator | Dilating puncture site | 14F | 700mm |
| Guidewire | Guiding balloon catheter | 0.025’’ | 1800mm |
| Stylet | Directing balloon to mitral valve | 0.038’’ | 800mm |
